【 Introduce 】

Type:HG510

  Introduce:

  Suitable  for  integrated  un-pressurized  solar  system

  • Main technical data
    1. Dimension: 210 mm x 145mm x 40mm
    2. Self power consumption:<3W
    3. Measuring accuracy of temperature:±2℃
    4. Temperature range of measurement:0~99℃
    5. Maximum power of controlled pump:≤600W
    6. Power of accompanied electrical heating wire:≤800W
    7. Power of auxiliary electrical booster:≤2000W(standard collocation)、≤3000W
        (not standard, selection available)
    8. DC 12V, AC 220V, pressurized valve and un-pressurized valve are available for selection
    ※Operation pressure of pressurized valve: 0.02Mpa~0.8Mpa, suitable for providing water directly
    ※Operation pressure of un-pressurized valve: 0.0Mpa , connected with water tank or low
       pressure water providing.

  • Main functions
    1. Water temperature display
    2. Water level display
    3. Water level pre-setup
    4. Manual water loading
    5. Temperature controlled water loading
    6. Timing water loading
    7. Water loading when tank is lack of water
    8. Compulsive water loading
    9. Increasing Water pressure during water is loaded.
    10. Water temperature pre-setup
    11. Manual heating
    12. Timing heating
    13. Hot water circulation
    14. Hot water pipe insulation
    15. Low pressure protection
    16. Collector tube protection

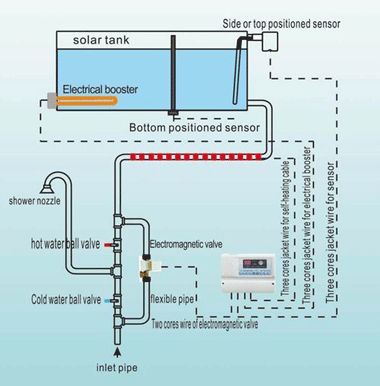

Solar controller System description






  Type:HG609

  Introduce

  suitable for integrated pressurized solar system

  • Main technical data
    1.Dimension: 170mmX128mmX40mm
    2.Self power consumption: <2W
    3.Measuring accuracy of temperature: ±2℃
    4.Temperature range of measurement: 0~99℃
    5.Power of auxiliary electrical booster ≤2000W


  • Main functions
    1.Time display
    2.Temperature display
    3.Timing heating at three time sections
    4.Manual heating
    5.Memory protection when power is failure
    6.Trouble indication of sensor

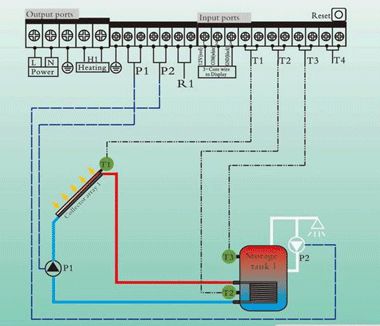

Solar controller System description




Type:HG868C6

Introduce

suitable for separated pressurized solar system

  • Main technical data
    1.Dimension: 120mmX120mmX18mm
    2.Self power consumption: <3W
    3.Measuring accuracy of temperature: ±2℃
    4.Temperature range of measurement: 0~120℃
    5.Power of temperature difference controlled circulation pump≤600W
    6.Power of time controlled circulation pump≤600W
    7.Power of auxiliary electrical booster ≤2000W


  • Main functions
    1. Clock display
    2. Temperature difference on/off
    3. Maximum tank temperature
    4. Frost protection5. Temperature controlled hot water circulation pump
    6. Time controlled hot water circulation pump
    7. Temperature controlled auxiliary heating during three time section
    8. Protection functions ( a. Memory protection, b. anti-bacteria protection )
    9. Changed between“℃/ OF”

Solar controller System description
